Rotary Base Junctions

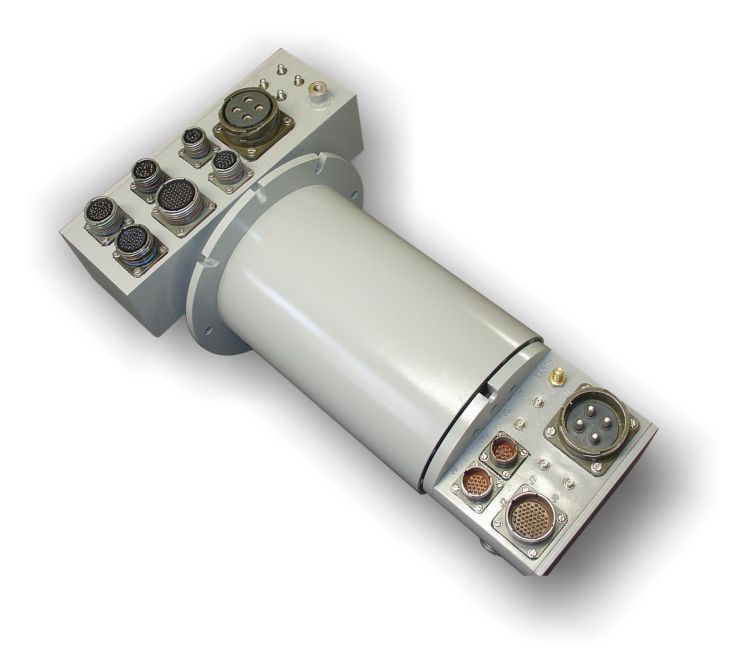

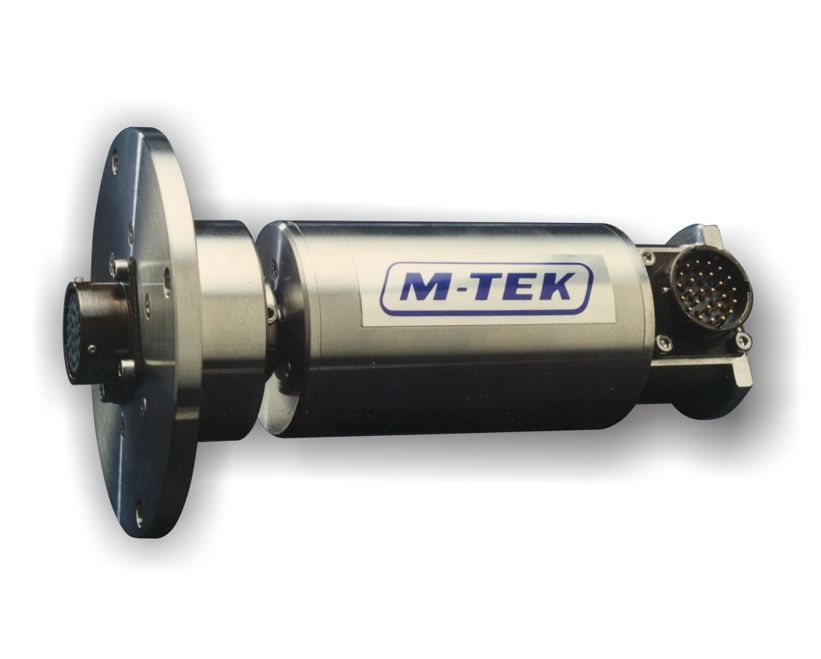

Rotary Base Junctions or RBJ’s, are assemblies which include besides low and very high current circuits, also varied functionality such as pneumatic or hydraulic junctions, wave guides, resolvers, connectors, etc.
- Current, continuous, on single circuit up to 450 A
- Current, peak, on single circuit up to 600A for 30 seconds
- Voltage up to 440 VAC
- Insulation resistance >200 Megaohm at 1000 VDC
- Speed up to 60 rpm
- Hollow shaft inside diameter Up to 100 mm
- Outside size typical 400 by 400 mm by 400mm
ROTARY BASE JUNCTIONS
- W0030:
400 circuits, 5 A, used on centrifuge - SA024:
68 circuits, 5 A, 2 circuits, 200 A, 46mm through hole for hydraulic junction 54 circuits, 5 A, including pneumatic junction - SA019:
74 circuits, 5 A, 1 circuit, 1 A, 2 circuits, 500 A - SA027:
46 circuits, 5 A, 2 circuits, 120 A, 2 circuits, 200 A, including pneumatic junction - L0145:
60 circuits, 2.6 A, 2 circuits, 300 A - SA028:
16 circuits, 2.6 A - SA026:
3 circuits, 16 A, 440 VAC
Please contact M-Tek for more information by clicking Request Information below.
