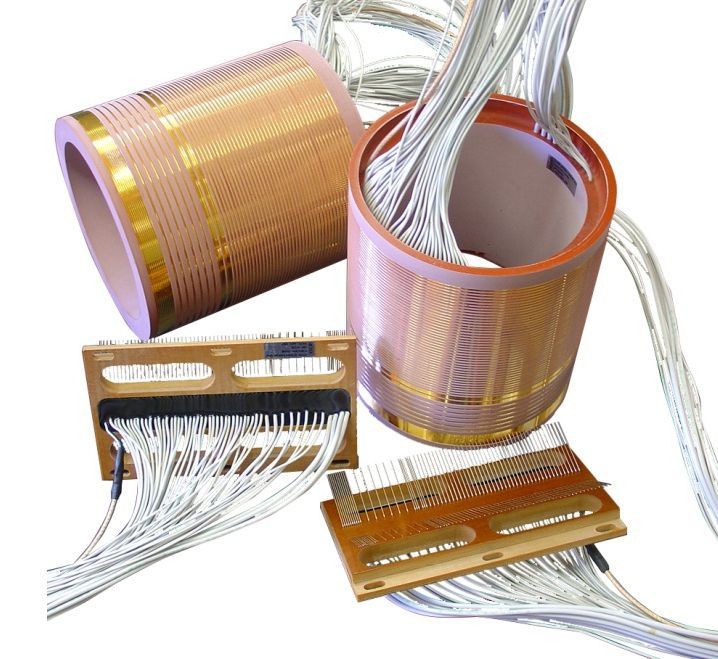

Hollow Modular Slip Rings
The slip ring assembly is usually supplied as separate ring and brush assemblies, and will be an integral part of the user’s mechanical design.
- Current, continuous, on single circuit Up to 5 A
- Voltage Up to 440 VAC
- Insulation resistance >200 Megaohm at 1000 VDC
- Contact resistance
- Maximum recommended surface speed 0.5 m/s
- Inside diameter up to 220 mm
- Outside diameter up to 250 mm
- Slip ring length. The number of circuits will determine the final length of the slip ring
- Number of circuits up to 80
HOLLOW MODULAR SLIP RINGS
- M009:
9 circuits, 60 A, 500mm diameter - RR005:
20 circuits, 5 A & 3 circuits 5A 440 VAC - SS014:
10 circuit, 5 A, high speed silver ring and silver graphite brush slip ring assembly - SS052:
20 circuits, 4 A & 2 circuits 16 A - K0275:
54 circuits, 5 A
Please contact M-Tek for more information by clicking Request Information below.
