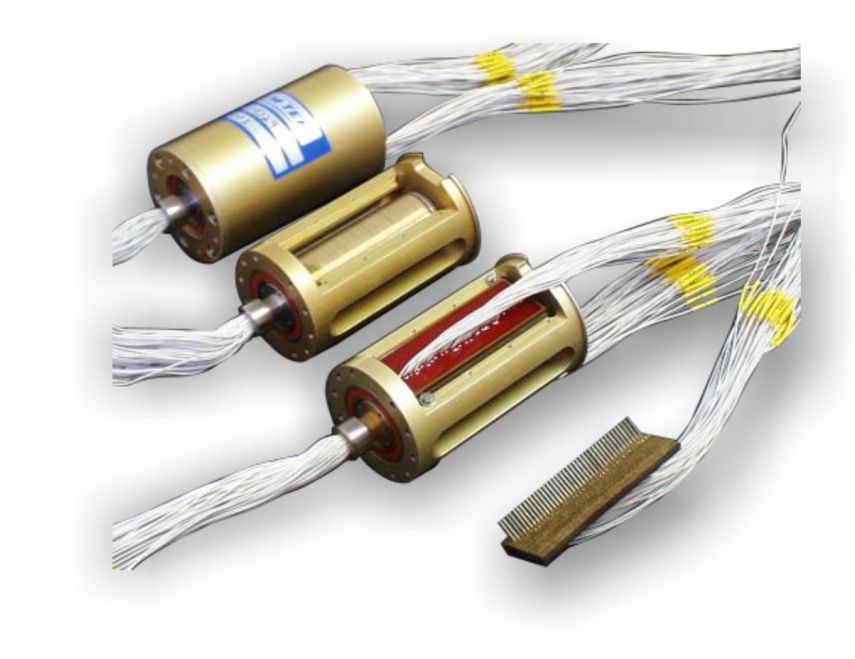

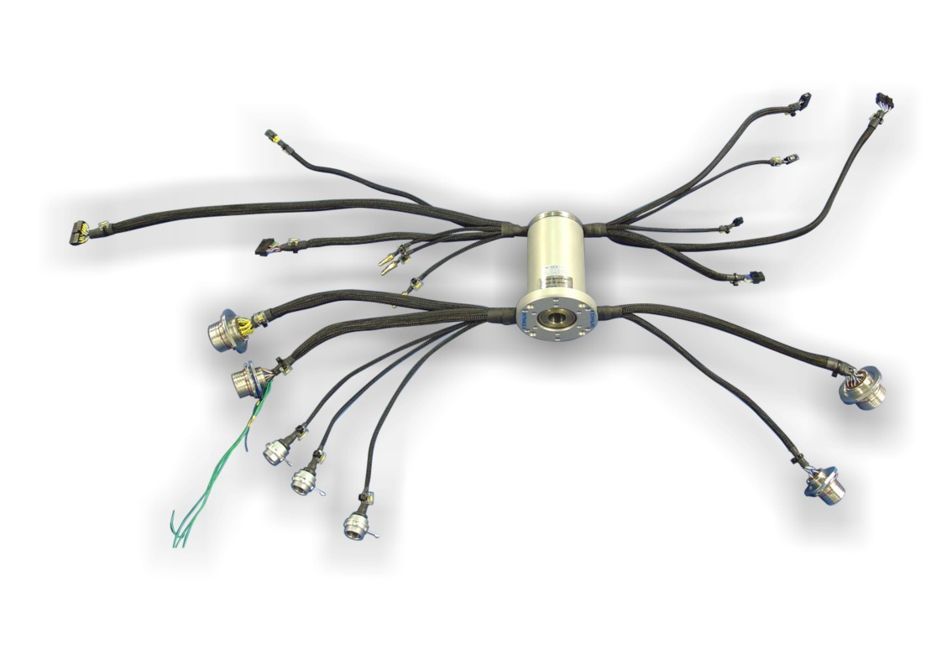

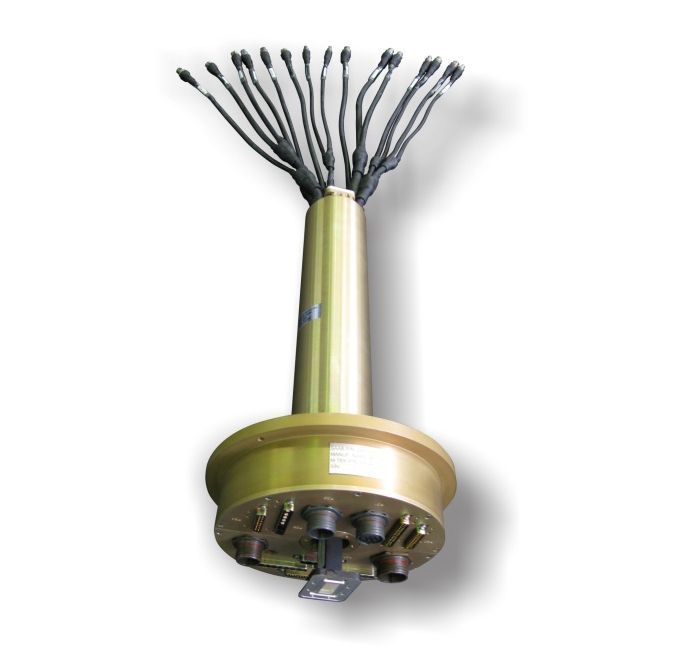

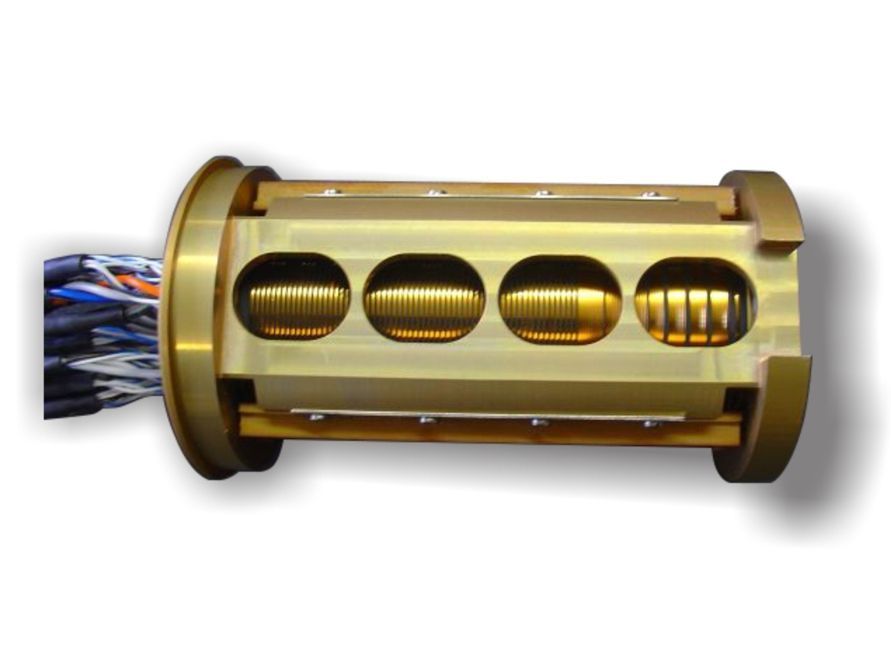

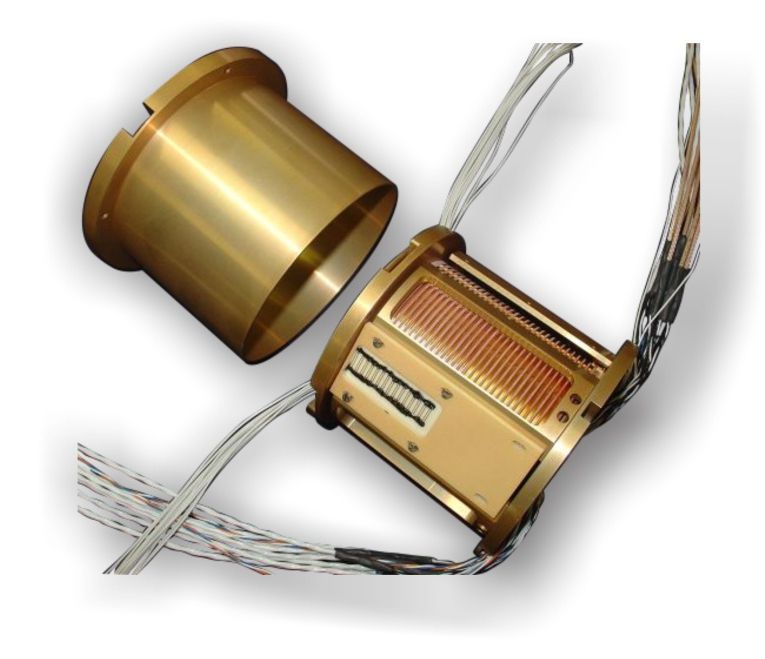

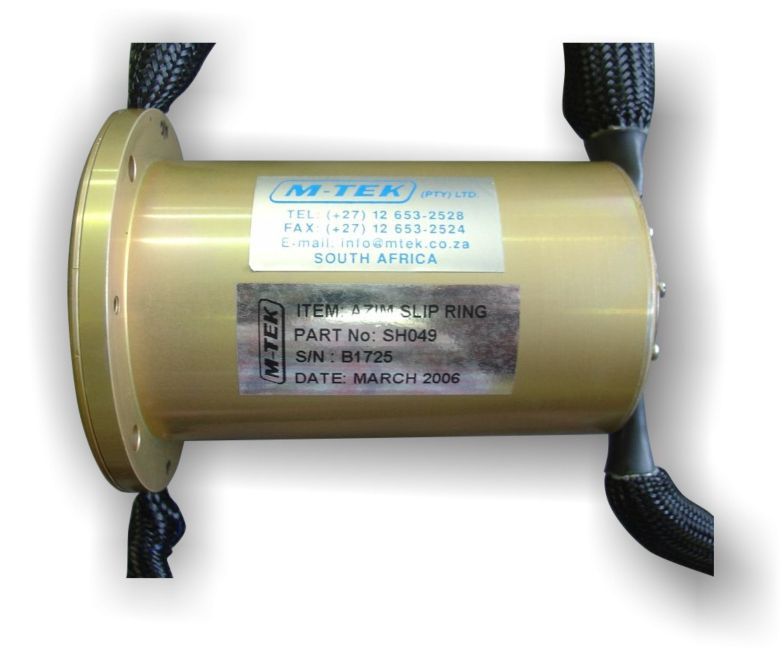

Housed and Capsuled Slip Ring Assemblies

The slip ring assembly is usually supplied as a self contained mechanical assembly, including bearings, seals, mechanical mounting surfaces and also connectors if required. Slip rings can be supplied with hollow shafts. Angular sensors can be included into the assembly.

• Current, continuous, on single circuit up to 2.6 A
• Voltage up to 100 VDC
• Insulation resistance >200 Megaohm at 500 VDC
• Contact resistance
• Typical speed 60 rpm
• Hollow shaft inside diameter 7 to 30 mm
• Slip ring length. The number of circuits and bearing arrangement will determine the final length of the slip ring
• Number of circuits up to 140

HOUSED AND CAPSULATED SLIP RING ASSEMBLIES

• SH029:
  80 circuits, 2.6 A
• SC016:
  5 circuits, 2.6 A and 3 circuits 6 A 240 VAC
• SH030:
  70 circuits, 2.6 A, 20mm hole through shaft
• SC011:
  10 circuits, 5 A
• SH020:
  80 circuits, 2.6 A, includes high pressure gas line and resolver
• K0336:
  4 circuits, 2.6 A
• SC007:
  20 circuits, 6 A, slim line core
• SA020:
  10 circuits, 2.6 A, high altitude balloon slip ring/swivel assembly, for loads up to 2 tons
• SH027:
  140 circuits, 2.6 A, fitted with resolver
• SH028:
  140 circuits, 2.6 A
• DBM034:
  10 circuits, 2.6 A, used for marine winch
• SH001:
  140 circuits, 2.6 A
• SH022:
  96 circuits, with amperage ratings 1.8, 4, 6 & 20. Also includes resolver and heated through hole for water drainage. Used on airborne optronic gimbal assembly
• SH020:
  80 circuits, 2.6 A, includes high pressure gas line and resolver

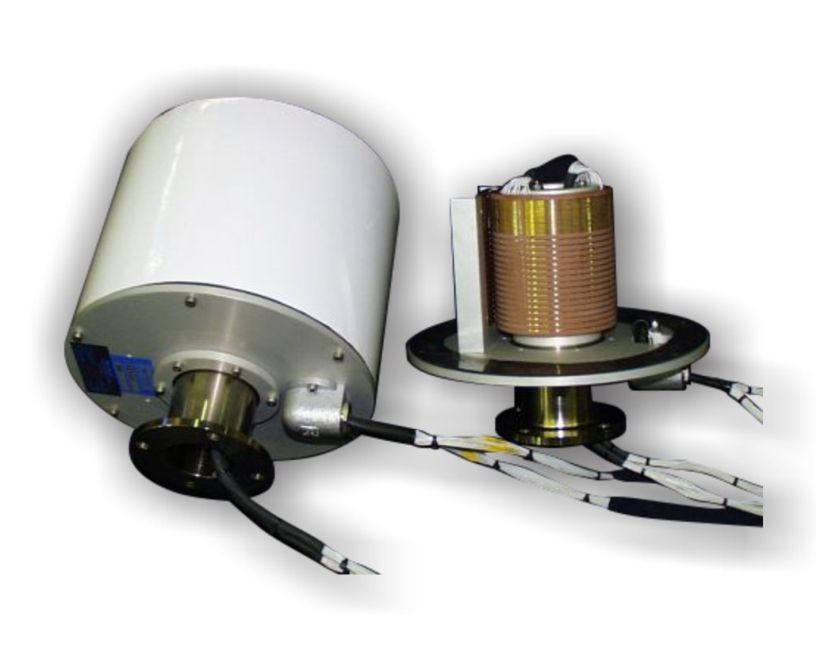

• SP001:
  Single pancake slip ring disc with 28 circuits, 2.6A. Housed pancake slip ring assembly fitted with 4 discs. Used on airborne optronic gimbal assembly
